2200pF 30KV High Voltage Ceramic Capacitors N4700 -25 to +85C 50PF to 20000PF 10KVDC-200KVDC

Name: 2200pF 30KV High Voltage Ceramic Capacitors N4700 25 to 85C 50PF to 20000PF 10KVDC200KVDC
Brand: ETOPMAY
Price: 1 USD

China 2200pF 30KV High Voltage Ceramic Capacitors N4700 -25 to +85C 50PF to 20000PF 10KVDC-200KVDC wholesale

Brand Name : ETOPMAY

Model Number : TMCC02

Certification : SGS( RoHS)

Place of Origin : China

MOQ : 20pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000pcs per month

Delivery Time : 12~15 working days

Packaging Details : Bulk, Tape

Capacitance : 2200pF

Voltage : 30KVDC

Tolerance : ±20%

Operating Temperature : -40~+85℃

Specification : 2200pF 30KVDC

Applications : X-ray equipment

Package : Bulk

Contact Now

2200pF 30KV High Voltage Ceramic Capacitors N4700 -25 to +85C 50PF to 20000PF 10KVDC-200KVDC

Specification

HIGH VOLTAGE CERAMIC CAPACITORS N4700

N4700 ceramic capacitor is successfully developed in recent years, a new type of ceramic, a ceramic material widely used in high-end products,compared to other Class I ceramic dielectric constant large, suitable for larger capacitance, resistance higher voltage, dissipation factor less than 0.2%, much lower than the average class II ceramic; insulation resistance is greater than 200000MΩ, better frequency and characteristics of the temperature coefficient, withstand greater current, Its temperature variation of capacitance is within ±28% from -25°C to +85°C, it is life of more than 10 years.

Features

＊Capacitance:50PF~20000PF
＊Voltage :10KVDC~200KVDC

＊Low dissipation factor of 0.2% at 1 KHZ

＊High frequency ≥550KHZ

＊High current ≥50mA

＊High voltage ≥1.5 times
＊High insulation resistance ≥200000MΩ

＊Long life ≥10 years

Applications

＊High frequency & high voltage power supplies;

＊ CO2 lasers, high voltage pulse generator

＊ X-ray equipment
＊ NDT (Non-destructive testing)

＊ Airport security equipment

Ceramic Dielectric	Operating temperature Range(℃)	Insulation Resistance (≧MΩ)	Dissipation Factor≦	Temperature characteristics
N4700(DL)	-25～+85℃	200000	0.2%	+/-20%

2200pF 30KV High Voltage Ceramic Capacitors N4700 -25 to +85C 50PF to 20000PF 10KVDC-200KVDC

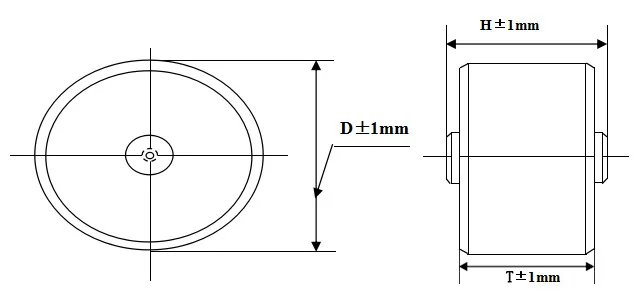

Part Number	Ceramic Dielectric	Rated voltage (KV)	Capacitance (pF)	Tolerance	Dimensions
					D	T	H	Screw
TMCC02-222M30KVB	DL (N4700)	30	2200	10	45	21	25	M5

Packing & Delivery

Precautions

(1) During transportation and storage • Do not transport or store where the capacitor will be exposed to high temperature or high humidity. • Do not expose to poisonous gases such as H2SO4, HCL or HNO3. • Avoid excessive impact such as that caused by falling.
(2) During operation • Avoid contact with electrolytes such as perspiration. Do not touch with bare hands. • Avoid excessive impact such as that caused by falling. • Do not apply solder to stud terminals. • Do not re-machine the terminals. (3) Usage • When the capacitor is used for high-speed pulses such as with a laser, make sure that the impressed voltage (peak-to-peak volt-age) is within the capacitor’s rated specifications. • Make sure that the capacitor is not exposed to radiant heat from cham.

Company Profile

Shenzhen Topmay Electronic Co.Ltd's headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.

By closely following the latest market trends, we provide “one-stop” capacitors and resistors solution, which are applied in
almost all kinds of PCB, communications, lighting, home appliance, industrial control, green energy, etc.

All the time, Topmay holds an idea that the products quality is the life of a company. We have passed ISO9001 quality system authentication and process strong research and development center and experienced service team. In order to serve our customers better, we have made investments so that our products can meet quality standards of UL, CE, SGS, CQC, etc. With these advantages, we have good reputation among global customers.
Topmay thanks for all trusts and supports from every customer. We are willing to cooperate with domestic and foreign customers to meet prosperity together, generations by generations.

Our series of capacitors and resistors can be divided into below types:

Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
Multilayer Ceramic Capacitor( radial, axial and SMD )
Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
Tantalum Capacitor(SMD, Radial , Axial )
Super Capacitor( Coin Type, Cylindrical Type, Module Type)
Mica Capacitor
Trimmer Capacitor

SMD Resistors
DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
Cement Resistors
Leadless Resistors( MLEF)
Power Resistor

FAQ

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
